4500m3/h hybrid desiccant dehumidifier with chiller | drying room dehumidifier | East Dehumidifier OEM ODM Manufacturing
- Model
- ZHL-D-4500FL.E
Item specifics
- Process Air Flow
- 4500m3/h
- Dehumidify Type
- Desiccant (Hybrid)
- Brand Name
- East Dehumidifier OEM ODM Manufacturing
- Location
- Zhejiang, China
- Condition
- Brand New
- Cooling capacity
- 48.8kW
- Voltage/Frequency
- 3ph,220V,60Hz
- Core Components
- Silica gel rotor, motor, PLC
- Function
- Air Dry
- Warranty
- 1 Year
Review
Description

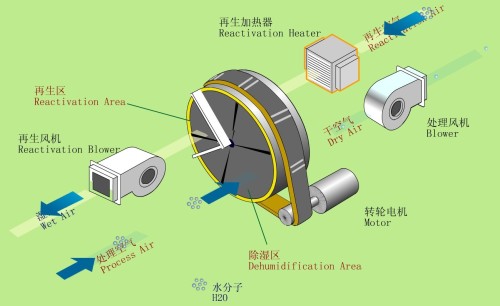

EAST Desiccant Rotor Dehumidifier · Hybrid Unit A 4500 m³/h hybrid desiccant rotor dehumidifier with integrated cooling coil and chiller, engineered for deep -40 °C dew-point drying rooms and large low-humidity processes. Every EAST hybrid-unit desiccant dehumidifier pairs a proven silica gel rotor with an integrated cooling section so you get steady low-humidity air without adding external equipment. A silica gel desiccant rotor with chain drive removes moisture continuously and is built to run trouble-free for more than 10 years. Stainless steel tube and fin cooling coil with SUS304 water tray handles the sensible heat load and keeps the dew point stable. A Siemens PLC with 7-inch touch panel and Vaisala dew-point sensor adjusts operation automatically to hold your target humidity. Regeneration heating reactivates the rotor with less energy, keeping power consumption low while drying performance stays high. Beyond removing moisture, this hybrid unit is designed to save you time, energy and maintenance over its service life. A single hybrid unit covers the environments that need dependable deep drying and integrated cooling most. Maintains the deep -40 °C dew point that sensitive drying rooms require, protecting product quality and consistency. Keeps production and storage areas free of moisture, working efficiently even at low temperatures. Holds precise humidity for sensitive instruments, samples and testing rooms where accuracy is non-negotiable. Protects stored goods from moisture damage and mildew all year round, reducing waste and rework. Key parameters of the ZHL-D-4500FL.E hybrid desiccant dehumidifier with integrated chiller. * Cooling capacity and power ratings are measured under the inlet conditions stated in the engineering design program. Specifications may be adjusted for customization projects. Each EAST hybrid unit is assembled and checked in our own factory, so what arrives on site is ready to run. As a hybrid desiccant rotor dehumidifier with integrated cooling, the unit reaches -40 °C dew point — far lower than condensing units — suitable for deep-drying rooms and low-humidity processes. The standard supply includes the dehumidifier unit, process and regeneration fans, silica gel rotor, cooling coil, proportional control valve, Siemens PLC, touch panel and filters. The chiller is supplied without the water pump, water tower, piping and valves. Absolutely. EAST Dehumidifier is an OEM/ODM manufacturer. We can customize airflow, cooling capacity, voltage, regeneration options and control systems to match your project requirements. Tell us your airflow, dew point and cooling load — our engineers will recommend the right hybrid unit and customization within one working day.
OEM / ODM Available
ZHL-D-4500FL.E Hybrid Desiccant Dehumidifier with Chiller
Core Features Built for Deep Low-Dew-Point Drying
Silica Gel Rotor Core
Integrated Cooling Coil
Siemens PLC Control
PTC Regeneration Heating
Advantages That Lower Your Operating Costs
Where the ZHL-D-4500FL.E Delivers the Biggest Benefit
Drying Rooms
Pharmaceutical
Laboratory
Food & Storage
Technical Specifications — ZHL-D-4500FL.E
Model ZHL-D-4500FL.E Rated process airflow 4500 m³/h ESP 500 Pa Reactivation electrical heating power 20 kW Process fan power 5.5 kW Reactivation fan power 0.75 kW Rotor drive motor power 0.24 kW Cooling capacity 48.8 kW Chiller power 19.5 kW Total rated power 45.99 kW Heating power in winter 10 kW Room dew point temperature -40 ℃ Power supply 3ph, 220V, 60Hz Approx. size 8090 × 1701 × 1651 mm Desiccant rotor Silica gel desiccant rotor, chain drive Control Siemens PLC + 7-inch touch panel
Tested and Verified Before Dispatch
Learn About Our Factory
Frequently Asked Questions
What dew point can the ZHL-D-4500FL.E reach?
What is included in the standard supply?
Do you support OEM / ODM customization?
Ready to Dry Your Process Air?
