850m3/h commercial desiccant dehumidifier | Humidity Dehumidifier | dehumidifier for room | East Dehumidifier OEM ODM Manufacturing
- Model
- SDC-800M
Item specifics
- Process Air Flow
- 850m3/h
- Dehumidity Type
- Desiccant
- Brand Name
- East Dehumidifier OEM ODM Manufacuring
- Location
- Zhejiang, China
- Condition
- Brand New
- Dehumidifying capacity(20°C,60%)
- 4.5kg/h
- Votage/Frequency
- 380V/50Hz
- Core Components
- Motor, wheels
- Function
- Air Dry
- Warranty
- 1 Year
Review
Description
EAST Desiccant Rotor Dehumidifier · Single Unit An 850 m³/h commercial workhorse for workshops, warehouses and production areas — continuous rotor dehumidification that protects goods and processes around the clock. Every EAST single-unit desiccant dehumidifier combines a proven rotor core with intelligent control so you get steady low-humidity air without babysitting. A world-renowned desiccant rotor removes moisture continuously and is built to run trouble-free for more than 10 years. PTC elements regenerate the rotor with less energy, keeping power consumption low while drying performance stays high. The SCR system keeps internal temperature stable, so dehumidifying performance remains reliable even at low dew points. A precise control system with humidistat adjusts operation automatically to hold your target humidity level. Beyond removing moisture, this unit is designed to save you time, energy and maintenance over its service life. A single compact unit covers the environments that need dependable low humidity most. Maintains the stable low humidity that drug production and storage require, protecting product quality and consistency. Keeps refrigeration areas free of frost and condensation, working efficiently even at low temperatures. Holds precise humidity for sensitive instruments, samples and testing rooms where accuracy is non-negotiable. Protects stored goods from moisture damage and mildew all year round, reducing waste and rework. The SDC-800M column is highlighted below. Full series data is shown so you can size across the range. * Dehumidifying capacity measured at 20°C and 60% RH inlet condition. Specifications may be adjusted for customization projects. Each EAST unit is assembled and checked in our own factory, so what arrives on site is ready to run. As a desiccant rotor dehumidifier, the unit achieves far lower dew points than condensing units — suitable for low-humidity processes down to deep-drying conditions, with stable output verified at 20°C, 60% RH in the specification table above. Yes. Unlike refrigerant dehumidifiers, the desiccant rotor keeps working at low temperatures, which is why it is widely used in cold storage and outdoor-cold workshops. The applied temperature range is -10°C to +50°C. Absolutely. EAST Dehumidifier is an OEM/ODM manufacturer. We can customize airflow, regeneration options, voltage, control systems and packaging to match your market requirements. Tell us your airflow and target humidity — our engineers will recommend the right model and customization within one working day.
OEM / ODM Available

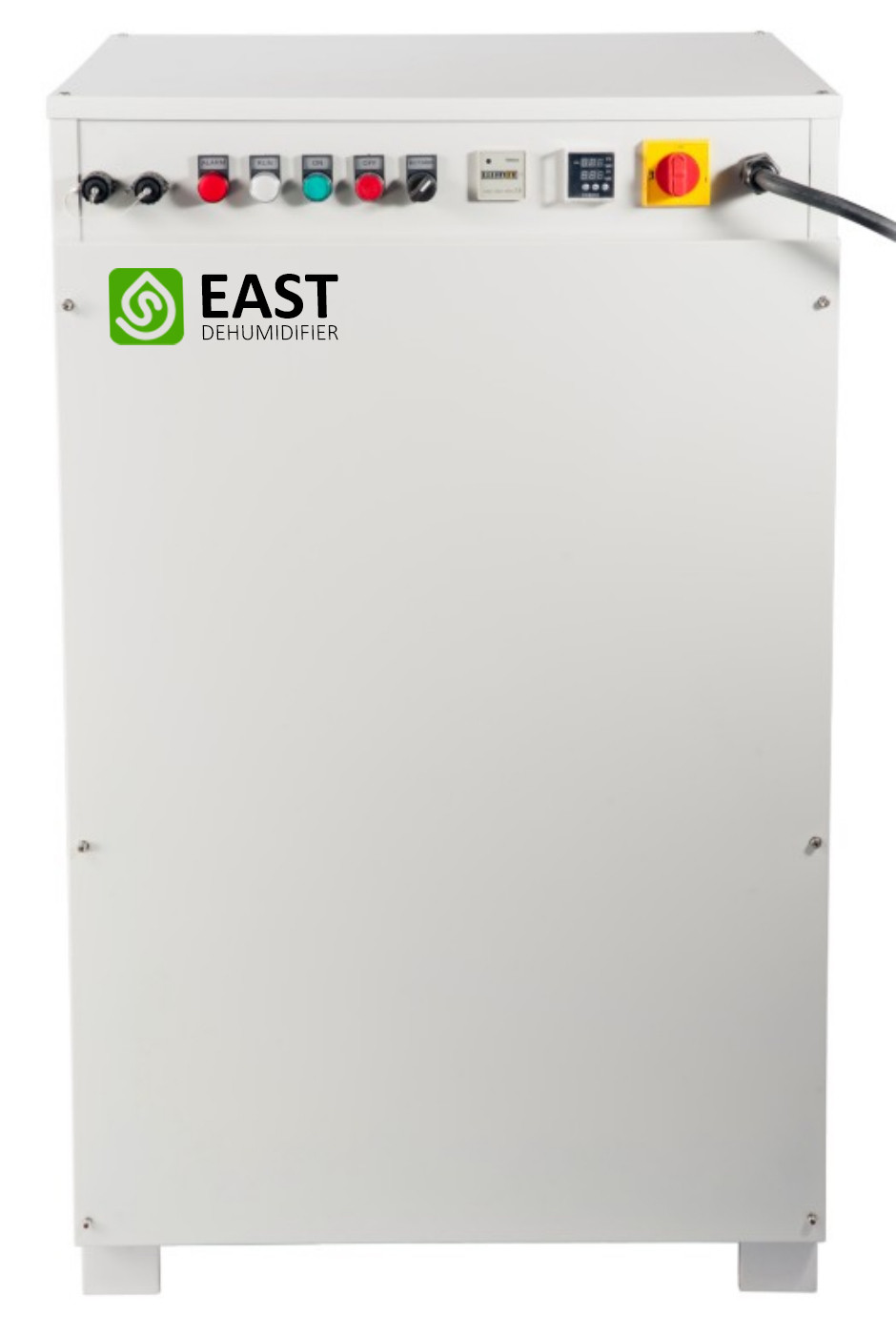

SDC-800M Commercial Desiccant Dehumidifier
Core Features Built for Reliable Deep Drying
Proflute Rotor Core
PTC Regeneration Heating
SCR Constant-Temperature Control
Intelligent Humidity Control
Advantages That Lower Your Operating Costs
Where the SDC-800M Delivers the Biggest Benefit
Pharmaceutical

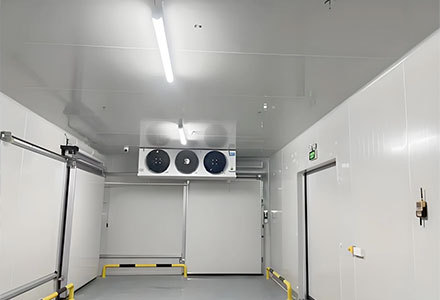

Cold Storage
Laboratory
Storage & Warehouse
Technical Specifications — SDC Series
Model SDC-300M SDC-600M SDC-700M SDC-800M SDC-1000M SDC-1200M SDC-1500M SDC-2500M SDC-3000M Voltage / Frequency 220V/50Hz 220V/50Hz 220V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz Dehumidifying capacity (20°C,60%) 2.0kg/h 3.0kg/h 4.0kg/h 4.5kg/h 7.5kg/h 8.5kg/h 10kg/h 15kg/h 19kg/h Power rating 2.0KW 4.5KW 7KW 10KW 11KW 13KW 15KW 24KW 27KW Current 9A 20A 32.5A 16A 18A 20.5A 23A 37.5A 42A Process air flow 320m3/h 580m3/h 700m3/h 850m3/h 1100m3/h 1250m3/h 1550m3/h 2500m3/h 3000m3/h Reactivation air flow 110m3/h 200m3/h 220m3/h 260m3/h 400m3/h 450m3/h 580m3/h 925m3/h 1100m3/h Process air flow pressure 80Pa 100Pa 120Pa 150Pa 150Pa 200Pa 200Pa 400Pa 400Pa Reactivation air flow pressure 50Pa 70Pa 70Pa 100Pa 100Pa 150Pa 150Pa 200Pa 200Pa Inlet size Φ125mm*2 Φ125mm*2 Φ200mm*2 Φ200mm*2 Φ200mm*2 Φ250mm*2 Φ250mm*2 522*286/Φ400mm 522*286/Φ400mm Outlet size Φ80mm*2 Φ100mm*2 Φ125mm*2 Φ150mm*2 Φ150mm*2 Φ160mm*2 Φ160mm*2 Φ200mm*2 Φ200mm*2 Applied Temperature -10~+50℃ -10~+50℃ -10~+50℃ -10~+50℃ -10~+50℃ -10~+50℃ -10~+50℃ -10~+50℃ -10~+50℃ Dimension 680*425*400mm 585*420*866mm 1080*550*671mm 875*640*1232mm 875*640*1232mm 880*678*1238mm 880*678*1238mm 1312*856*1300mm 1312*856*1300mm Packed Dimension 780*525*550mm 685*520*1016mm 1280*650*821mm 975*740*1382mm 975*740*1382mm 980*778*1388mm 980*778*1388mm 1412*956*1500mm 1412*956*1500mm Net Weight 45 kg 70 kg 100 kg 150 kg 160 kg 175kg 180 kg 270 kg 280 kg Gross Weight 55 kg 80 kg 110kg 160 kg 170 kg 190 kg 195 kg 290 kg 290 kg
Tested and Verified Before Dispatch
Learn About Our Factory
Frequently Asked Questions
What dew point can the SDC-800M reach?
Can it operate in cold environments?
Do you support OEM / ODM customization?
Ready to Dry Your Process Air?
