Model
SDD-360L

Item specifics

Installation
Ceiling / Wall Mounted
Dehumidifying Type
Refrigeration
Refrigeration Technology
Compressor
Compressor Type
Rotary
Refrigerant
R410a
Cooling Capacity
16.4 Kw
Brand Name
East Dehumidifier OEM ODM Manufacturing
Location
Zhejiang, China
Condition
Brand New

Review

Description

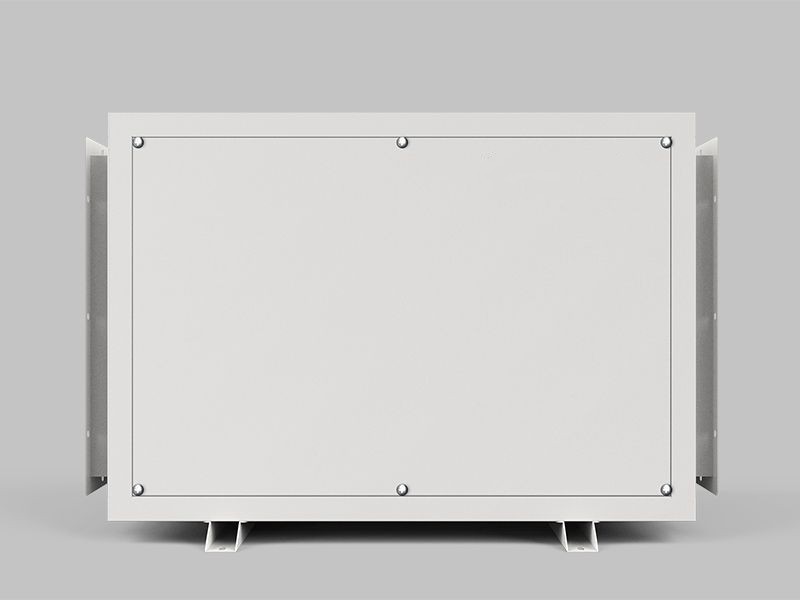

EAST SDD Serise dehumidifier
360 liters per day overhead industrial dehumidifier for greenhouse, ceiling mounted | East Dehumidifier

EAST SDD serise Grow Room Dehumidifier use frame supported all metal plate body, with four feet to be mounted on the ceiling. It will not take any floor space. Round or square duct connection is available. With thickened large area evaporator and condenser and drived by the Panasonic or LG powerful compressor makes the high efficiency of SDD dehumidifier. It will reach max up to 960 liters per day water removal capacity (@RH80%, 30℃) in the serise. Smart humidistat panel for easy control, and we make specially terminal to be connected to 3rd party controller for mutiple dehumidifier units to control on/off, and Rs485 connection is available too. SDD serise dehumidifiers are designed for  areas such as greenhouse, plant grow room, warehouse, resident, basement, indoor swimming pool, indoor parking area, hotel etc. The units are open for developing with your unique requirement of controller, installation way, private label, component brand, appearance, functions.

FEATURES

Firm frame metal plate body

Clear design and crafts

Long life centrifugal motor

World-famous brand compressor

Big heat exchanger for high efficiency

Wood packing for  shipment

PARAMETER  SDD-360L
Cooling Capacity
56,000 BTU
16.4KW
Water Removal Capacity
@30℃, RH80%, 24hrs
760 Pints
360L
Supply Voltage
380/480V
380/480V
Rated Power
6.5 Kw
6.5 Kw
Rated Amps
9 A
9 A
Air Volume @ 0.0" ,CFM
2350
4000m³/h
Static Pressure
100~150 Pa
100~150 Pa
Working Temperature
41℉~100℉
5℃~38℃
Humidity Range (RH)
40%~95%
40%~95%
Net Dimensions
43.3" x 50.4" x 27.4"
1100x1280x695mm
Packed Dimesions
47.3" x 54.3" x 33.5"
1210X1320X845mm
Net Weight
462 Lbs
210Kg
Gross Weight
507 Lbs
220Kg
Air Inlet Flange Size
39.5" x 20.6"
1004x524mm
Air Outlet Flange Size
39.5" x 20.6"
1004x524mm
Noise
≤70dB
≤70dB
Applying Area
3000~5000 Sqft
300-500㎡
Application
Plant Grow humidity control
Suitable humidity is essential for the plants
Wine storage with suitable humidity
To ensure your wine at  good humidity condition.
Principle of dehumidifier
The priciple of air circulation.
The wet air will be drawn into the machine and passed through the heat exchanger. So the moisture in the air will be condensed into water on the condenser and dry air will be released out of the dehumidifier.

The principle of refrigerant.

High pressure refrigerant liquid enters into the evaporator after throttling by capillary. The refrigerant is evaporated as low temperature and low pressure gas by absorbing thermal from air after heat exchange. The low temperature low pressure refrigerant gas is inhaled into the compressor, after compressor compressing, the gas become high temperature high pressure refrigerant gas and get into the condenser. Then the refrigerant gas get into the condenser, after heat dissipation, the refrigerant gas become high pressure refrigerant liquid. Above is a complete cycle of refrigerating after repeating.

Packaging And Shipping
Fixing with screw on plywood for stable transporation.
Rolling with poly to prevent scratching.
Both stick or print carton mark can be OK.
Packaging And Shipping
Wood packing is a must for dehumidifiers international shipping. To port or door, get flexible, reliable and affordable shipping solutions that fit your business.
After-sales guarantee
  • We provide 12 months warranty for whole unit. If any problem due to our quality within 12 month, please send photo or video to us, we will send the broken parts to you free.
  • We provide 36 months warranty for the compressor.
  • The single serise number of each machine can be kept in EAST system, so that we can trace the production source.
