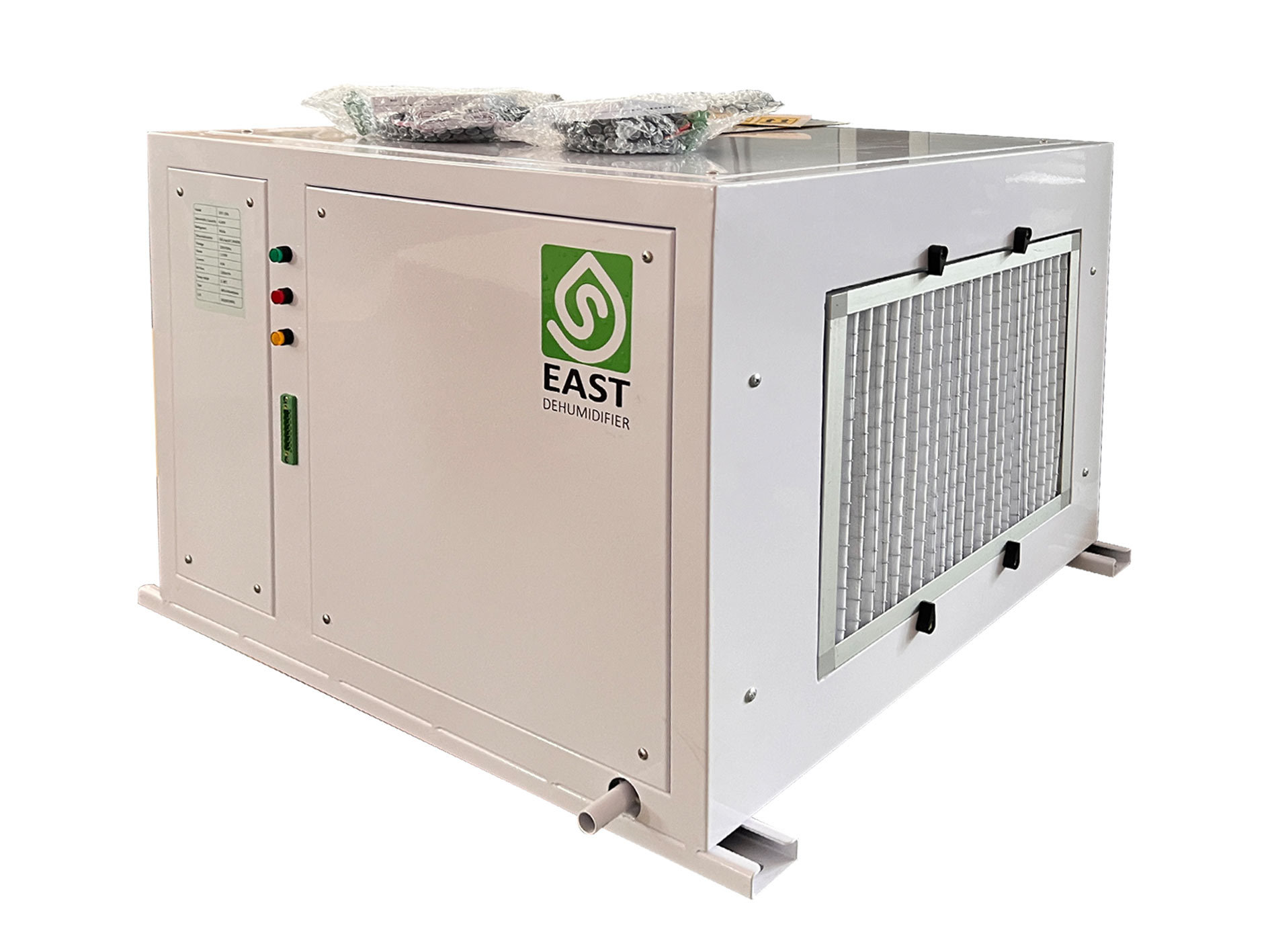

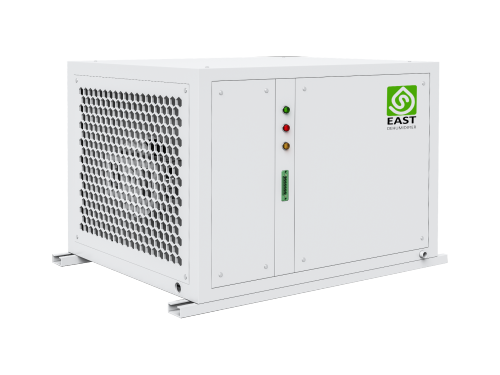

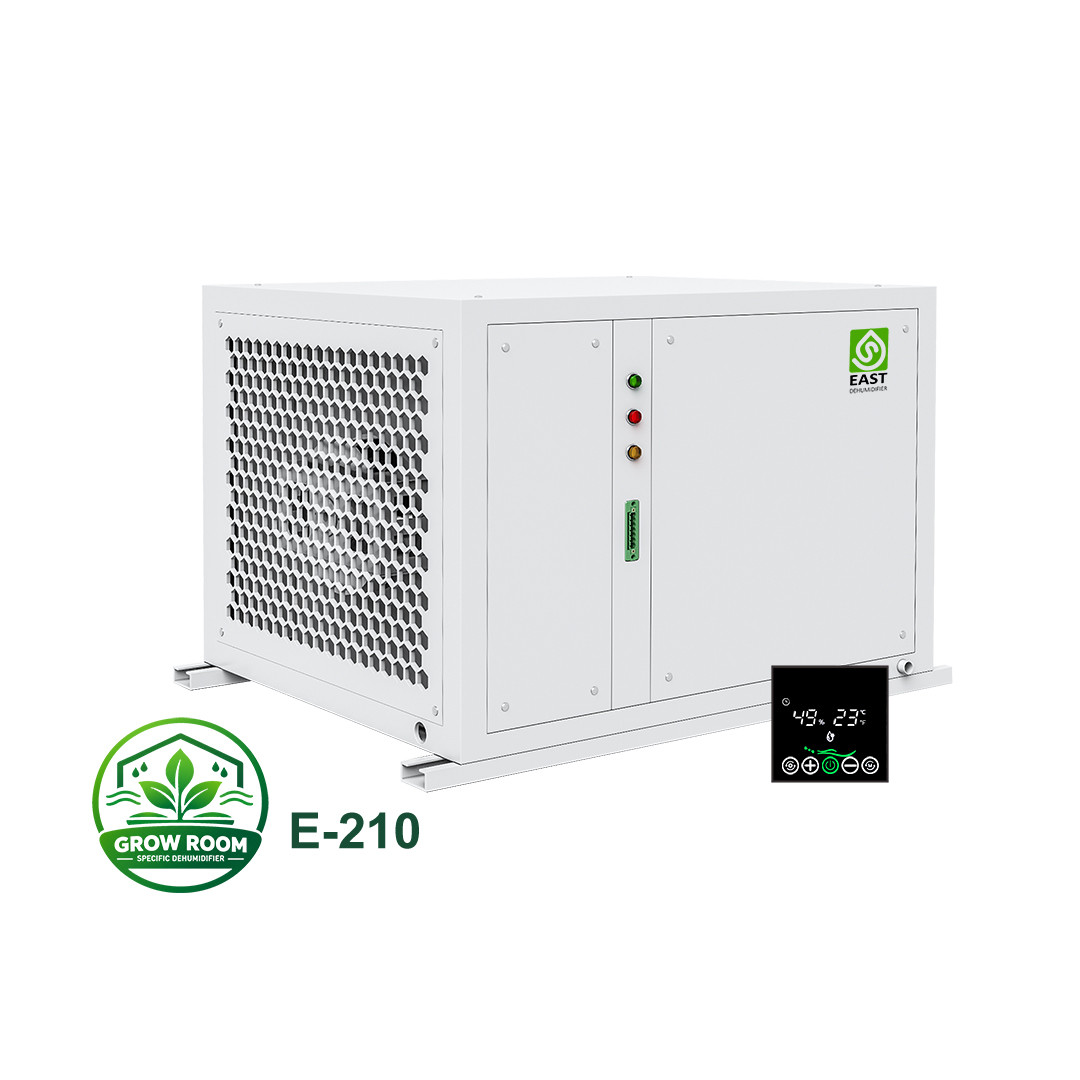

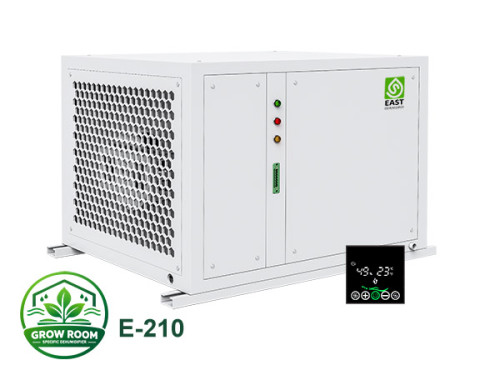

EAST ONE150 L/D Ceiling Mounted Dehumidifier | 320Pint dehumidifier | Thirty-Party Control Ready | EC Fan
- Model
- EAST ONE
Item specifics
- Installation
- Ceiling / Wall Mounted
- Dehumidifying Type
- Refrigeration
- Refrigeration Technology
- Compressor
- Compressor Type
- Rotary
- Refrigerant
- R410a
- Cooling Capacity
- 4.2 Kw
- Brand Name
- East Dehumidifier OEM ODM Manufacturing
- Location
- Zhejiang, China
- Condition
- Brand New
Review
Description

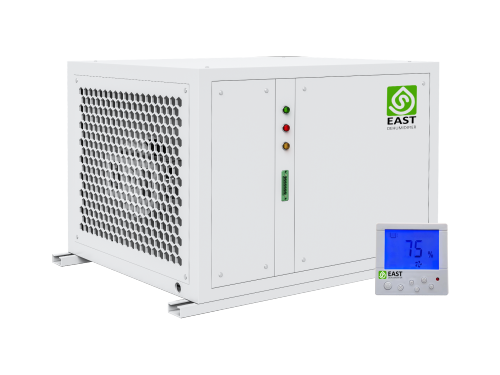

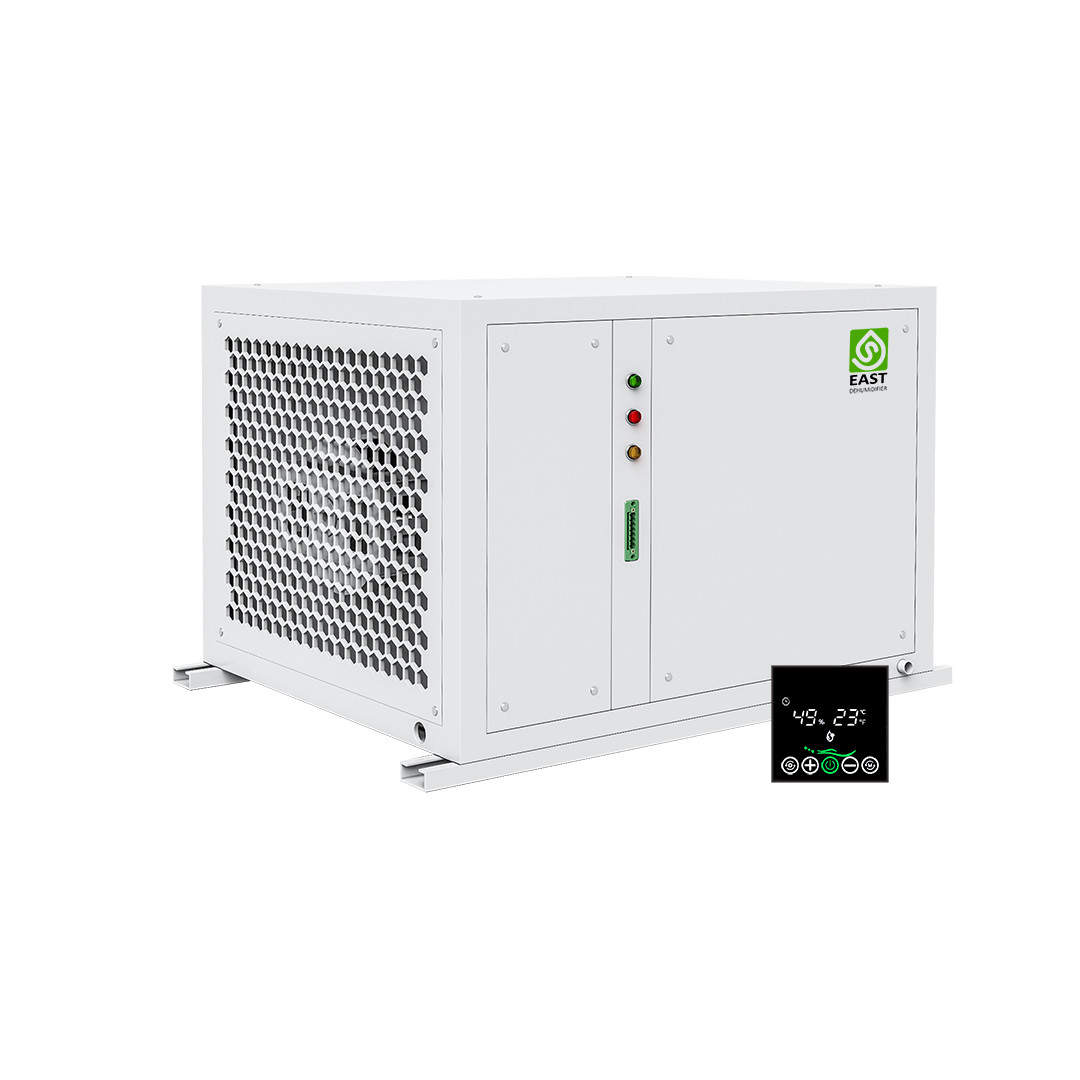

A new multiple functional controller(DHD100) is also provided with EAST ONE grow dehumidifier. It can be used not only for EAST One grow dehumidifiers, but also can be used as a third-party controller to other modern brand dehumidifiers.
In order to match current modern dehumidifiers & third party controller system perfectly. The EAST ONE Grow Dehumidifier provides 24V DC power for both 24V AC or DC third party controller. While the controller DHD100 can be powered by either 24V AC or DC.
We are open to our buyers or cooperators to add different function into the controller system, such as WIFI, RS485, Bluetooth.
Firm frame metal plate body
Long life brushless fan
Cooling Capacity | 14,330 BTU | 4.2KW |
|
Water Removal Capacity @30℃, RH80%, 24hrs |
320 Pints
|
150L
|
Supply Voltage | 208~240V | 208~240V |
Rated Power | 1.5 Kw | 1.5 Kw |
Rated Amps | 7.0A | 7.0A |
Air Volume @ 0.0" ,CFM | 790 | 1350m³/h |
Static Pressure | 50~80 Pa | 50~80 Pa |
|
Working Temperature
|
41℉~100℉
|
5℃~38℃
|
Humidity Range (RH) | 40%~95% | 40%~95% |
Net Dimensions | 27.4" x 21.3" x 18.5" | 695x540x465mm |
Packed Dimesions | 30" x 24.5" x 24.5" | 740x620x610mm |
|
Net Weight
|
133 Lbs
|
60Kg
|
|
Gross Weight
|
149 Lbs
|
67Kg
|
Air Inlet Flange Size | 10.4" x 10.4" | 265x265mm |
Air Outlet Flange Size | 6.5" x 6.5" | 166x166mm |
Noise | ≤60dB | ≤60dB |
Applying Area | 1300~1800 Sqft | 110-170㎡ |
The DHD100 Controller is already fixed with plug, you can directly plug into the EAST Grow Dehumidifier and control for dehumidifying or ventilating mode.
You can use wiring scheme photo to extend the controlling wires.
EAST ONE Grow Dehumidifier is available for different kind of Third-Party Controller. In order to match current modern dehumidifiers & third party controller system perfectly. You can use below wiring scheme to connect third party controller.
EAST ONE dehumidifier provides 24V DC power for both 24V AC or DC third-party controller (40VA max). You can use wiring scheme to connect 24V required third-party controller.
High pressure refrigerant liquid enters into the evaporator after throttling by capillary. The refrigerant is evaporated as low temperature and low pressure gas by absorbing thermal from air after heat exchange. The low temperature low pressure refrigerant gas is inhaled into the compressor, after compressor compressing, the gas become high temperature high pressure refrigerant gas and get into the condenser. Then the refrigerant gas get into the condenser, after heat dissipation, the refrigerant gas become high pressure refrigerant liquid. Above is a complete cycle of refrigerating after repeating.
- We provide 12 months warranty for whole unit. If any problem due to our quality within 12 month, please send photo or video to us, we will send the broken parts to you free.
- We provide 36 months warranty for the compressor.
- The single serise number of each machine can be kept in EAST system, so that we can trace the production source.
- We will provide paid parts service after warranty period.
- The VIP price of spare parts will be provided for EAST distributors and members.
